Description

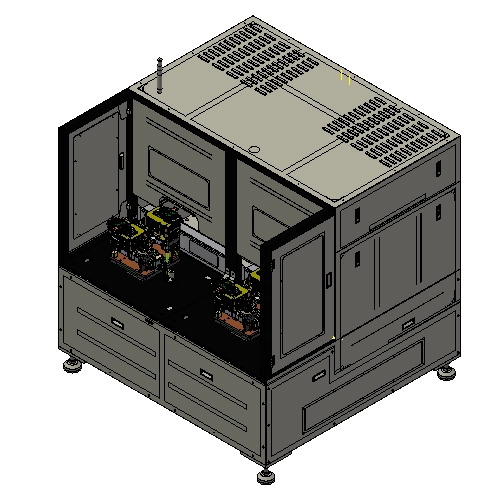

Single index 4 para
AWB & Shading Cal Dual Cal
Full Auto
| Item | Description | Site |
| Title | AWB & shading calibration and dual calibration | – |
| TEST categories | Loading/unloading & Bar Code Reading & Focus | D |
| Image Test & OTP Write (Color Calibration – 5000K) | A | |
| Dark Test & Focus | B | |
| Image Test & OTP Write (Color Calibration – 2800K) | C | |
| CCM resolution | Up to Up to 16Mpixels @YUV 4:2:2 Sensor | – |
| Built-in tester | 4x V5UR2 DC 1.5G Tester (USB3.0 Interface / MIPI 4 Lane) | A,B,C,D |
| Built-in PC | 1x PC / 2x Monitor | – |
| Collimator lens | Optional | B |
| Light 1 | [Focus] HVL-700D LED Light Source 770x590mm | B,D |
| Light 2 | [Image] 2800K & 5000K | A |
| Loading method | 1 index 4 para / 4 face up image direction, Manual or Auto | A,B,C,D |
| Barcode reader | Optional | D |
| Rotator | 270° Back Rotation / Non-pogo pin contact type | – |
| Utility | Air Pressure: 4.5~5.5Kg/cm2, Air horse: 8mm, 1Line | – |
| Power | AC220V. 2phase/50,60Hz (Can be customized) | – |
| Dimension | W1200 X D960 X H1855(/wo tower lamp) (mm) | – |
